ISO 7241B Hydraulic Quick Disconnect

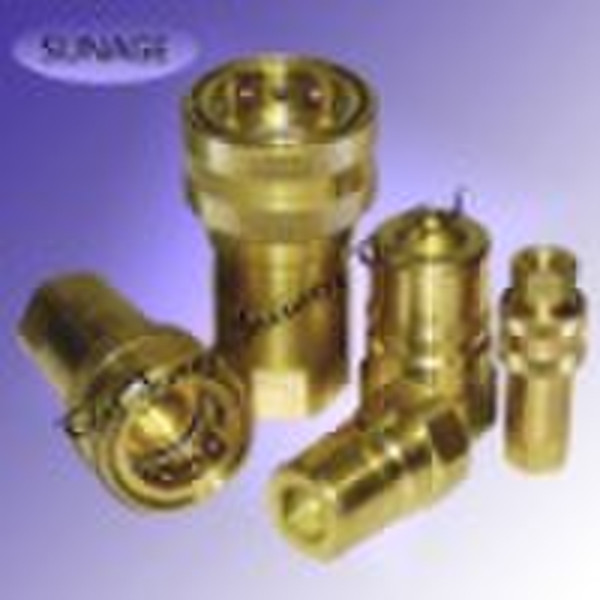

ISO 7241B Hydraulic Quick Disconnect Features: *Popet valves available to prevent uncoupled leakage. *Ball valves available for rugged dependability in heacy-duty hydraulic applications,within rated working pressure. *Critical parts are induction hardened for durability. *Dependable ball-locking mechanism holds the mating halves together. *Socket and plug are precision machined from solid bar stock. *This Series coupling interchange with couplings meeting ISO 7241-1,Series B Applications: This Series quick couplings brings to the industry a proven sesing for use on construction equipment,forestry equipment ,agricultural machinery,oil tools,steel maill machinery ,and other demanding hydraulic hydraulic applications. All kinds of Couplings: Quick coupler, hydraulci quick coupler, pneumatic quick coupler quick release coupler, quick disconect coupler KZB Series Hydraulic Quick Couplings(Steel)SpecificationsBody size (in)1/43/81/23/41Rated Pressure (Bar)350300300250200Material:Carbon steelStandard seal material:NBR (other material is available on request)Temperature Range (Std seals):-20°C to +80°CPLUGPart No.Thread size BSPPA Overall Length (mm.)B Exposed Length (mm.)C Hex Size (mm.)D Largest Diameter (mm.)Part No.Thread size NPTA Overall Length (in.)B Exposed Length (in.)C Hex Size (in.)D Largest Diameter (in.)KZB-01PFG1/841.010.014.017.0KZB-N01PFNPT1/81.610.410.560.65KZB-02PFG1/435.017.019.022.0KZB-N02PFNPT1/41.390.650.750.87KZB-03PFG3/838.014.022.026.0KZB-N03PFNPT3/81.500.540.881.01KZB-04PFG1/244.018.028.033.0KZB-N04PFNPT1/21.750.691.121.30KZB-06PFG3/455.020.035.040.0KZB-N06PFNPT3/42.160.791.381.59KZB-08PFG174.025.041.048.0KZB-N08PFNPT12.910.991.621.88KZB-10PFG1 1/476.025.054.059.0KZB-N10PFNPT1 1/42.990.992.132.32KZB-12PFG1 1/282.026.063.069.0KZB-N12PFNPT1 1/23.221.022.482.72KZB-16PFG288.028.077.084.0KZB-N16PFNPT23.461.103.033.30 SOCKET Part No. Thread size BSPPE Overall Length (mm.)F Hex Size (mm.)G Largest Diameter (mm.)Part No. Thread size NPT E Overall Length (in.)F Hex Size (in.) G Largest Diameter (in.)KZB-01SFG1/848.017.024.0KZB-N01SFNPT1/81.90.680.96KZB-02SFG1/457.021.029.0KZB-N02SFNPT1/42.260.811.14KZB-03SFG3/863.022.036.0KZB-N03SFNPT3/82.490.881.4KZB-04SFG1/273.028.045.0KZB-N04SFNPT1/22.871.121.77KZB-06SFG3/490.033.054.0KZB-N06SFNPT3/43.561.312.14KZB-08SFG1106.041.064.0KZB-N08SFNPT14.181.622.52KZB-10SFG1 1/4115.054.079.0KZB-N10SFNPT1 1/44.532.133.11KZB-12SFG1 1/2124.063.079.0KZB-N12SFNPT1 1/24.882.483.11KZB-16SFG2132.077.0109.0KZB-N16SFNPT25.23.034.29
